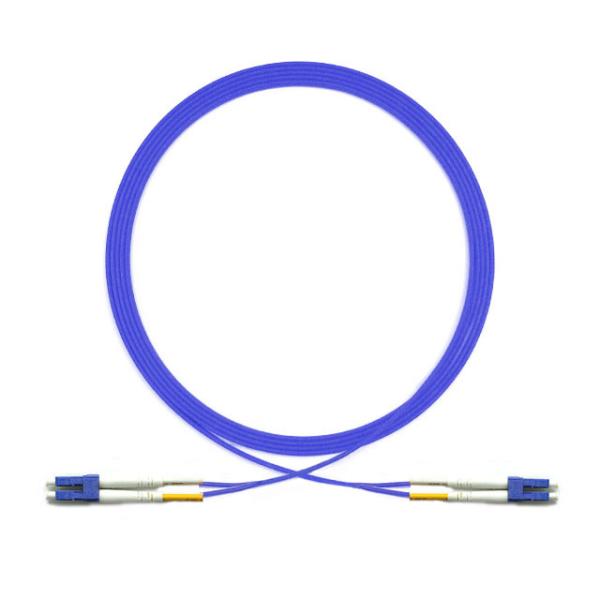

LCUPC Duplex DX Armoured Fiber Optic Patch Cord For Communication Allocation

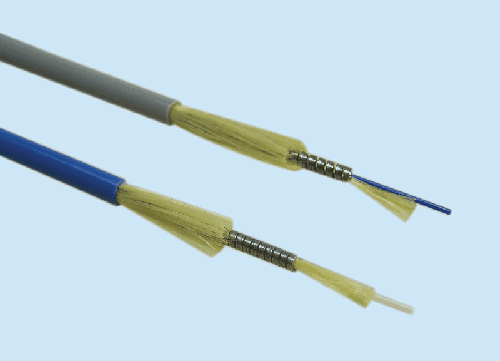

The biggest difference between armoured patchcords with other patchcords is not easy to be damaged, because of a small stainless steel casing out of the fiber. Armoured patchcords use flame-retardant PVC. This design can make project convenient and lengthen the fiber life.

Application:

optical fiber sensor, telecommunication equipment

optical fiber communication system, LAN

TV, communication allocation, National defense.

Test equipments, Active optic device

FTTH

Features:

High tensile strength

Lateral pressure protected

Defense rat

Soft, strong adaptability

project convenient

low insertion loss, high return loss

Realize the active link of optic fiber transmission

Specifications:

	SM			MM
connector type	FC/PC	FC/UPC	FC/APC	FC/PC
	SC/PC	SC/UPC	SC/APC	SC/PC
	ST/PC	ST/UPC		ST/PC
	LC/PC	LC/UPC		LC/PC
return loss	≥45dB	≥50dB	≥60dB	≥35 dB
insertion loss	≤0.2dB
operating temperature	-40℃~+80℃
repeatability	≤0.1dB
interchangeability	≤0.2dB
Plug times	1000 times
tensile strength	>100N

Packaging

Han Xin Communications Limited is a high-tech enterprise specialized in the research and manufacture of fiber optic telecommunication products. Han Xin was founded by a leading team of professional technicians and research pioneers, who have been dedicated to the fiber optic communication field for 10 years. Our products are widely used in telecommunication system, LAN, broadcast, CATV and network industry. We provide the following high-quality products: fiber optic patch cord production machines (fiber optic polishing machine ,fiber optic oven ,fiber optic jigs and so on).passive products (fiber optic patch cords, connectors, adapters, attenuators, couplers, PLC splitters, WDM, isolators and so on), active products (fiber media converters, transceivers, etc.), management products (fiber patch panels, ODF, joint closures and fiber faceplates) and FTTH products (fast field connectors, fiber optic mechanical splicers, FTTH indoor cables, drop cables, etc.)Our company is committed to providing stable quality and excellent service systems with continuous innovation and professional solution, ensuring product quality.

Our company is an ISO9001 certified company with 15 products and software related patents, and was awarded the title of “National High-tech Enterprise” in 2018.
