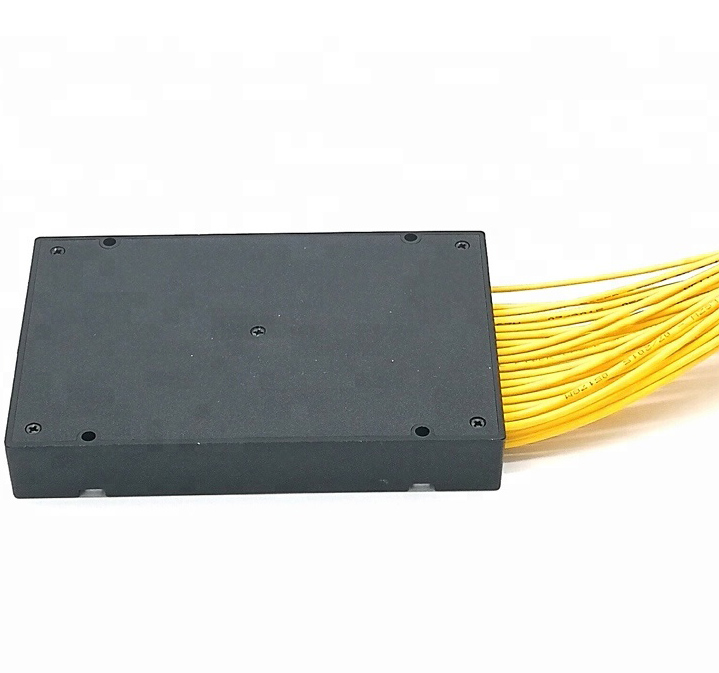

FTTB FTTH 1x32 Fiber Optic PLC Splitter ABS Box Type With SCAPC Connector

Han Xin Communications Limited
Contact Now
    Buy cheap FTTB FTTH 1x32 Fiber Optic PLC Splitter ABS Box Type With SCAPC Connector from wholesalers

    Buy cheap FTTB FTTH 1x32 Fiber Optic PLC Splitter ABS Box Type With SCAPC Connector from wholesalers
    • Buy cheap FTTB FTTH 1x32 Fiber Optic PLC Splitter ABS Box Type With SCAPC Connector from wholesalers
    • Buy cheap FTTB FTTH 1x32 Fiber Optic PLC Splitter ABS Box Type With SCAPC Connector from wholesalers
    • Buy cheap FTTB FTTH 1x32 Fiber Optic PLC Splitter ABS Box Type With SCAPC Connector from wholesalers

    FTTB FTTH 1x32 Fiber Optic PLC Splitter ABS Box Type With SCAPC Connector

    Ask Lasest Price
    Brand Name : hanxin or OEM
    Model Number : 1*32 ABS box splitter
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 2000PCS Per month
    Delivery Time : 3-15 working days
    • Product Details
    • Company Profile

    FTTB FTTH 1x32 Fiber Optic PLC Splitter ABS Box Type With SCAPC Connector

    FTTB FTTH 1x32 Fiber Optic PLC Splitter ABS Box Type With SCAPC Connector


    Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Fibercan provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.


    Technical specifications


    Wavelength(nm)1260-1650
    Parameters1×41×81×161×321×642×42×82×162×32
    Insertion Loss(with connector)(dB)≤7.4≤10.7≤13.7≤16.9≤21≤7.8≤11.5≤14.5≤17.7
    Insertion Loss(W/O connector)(dB)≤7.7≤11.2≤14.2≤17.5≤21.5≤8.3≤12≤15≤18.2
    Uniformity (dB)≤0.8≤1.0≤1.4≤1.9≤2.7≤1.7≤1.7≤2.2≤2.7
    PDL(dB)≤0.3≤0.3≤0.3≤0.3≤0.4≤0.2≤0.4≤0.4≤0.4

    Size(bare bype)

    (H×W×L)(mm)

    4×4×504×7×504×12×604×4×504×7×50
    Return Loss(dB)>50
    Directivity(dB)>55
    Temperature Range(°C)-40~+75
    Storage Temperature(°C)-40~+85

    Notes:

    1. Specified without connectors.

    2. Add an additional 0.2dB loss per connector


    Key Features


    1) Low Insertion loss


    2) Low PDL


    3) Compact Design


    4) Good channel-to-channel uniformity


    5) Wide Operating Wavelength: 1260-1650nm


    6) Wide Operating Temperature: -40°C - 85°C


    7) High Reliability and Stability



    Application

    • FTTX Systems
    • PON Networks
    • CATV Links
    • Optical Signal Distribution
