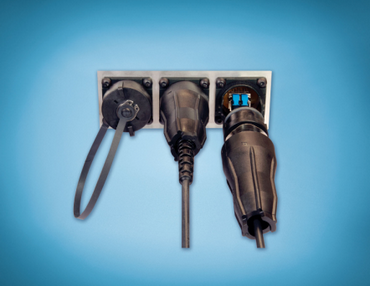

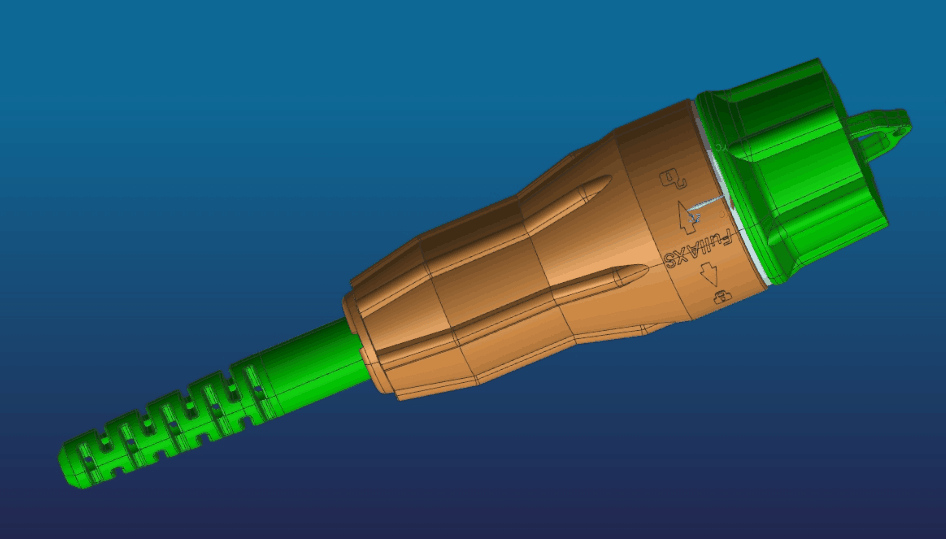

Outdoor FullAXS Fiber Optic Patch Cord Connector Telecommunication Equipment

Outdoor FullAXS Fiber Optic Patch Cord Connector Telecommunication Equipment

To meet the needs of the next generation WiMax and long term evolution (LTE) fiber to the antenna (FTTA) connection design for outdoor use harsh requirements, 3clink has released the FullAXS connector system, which provides the remote radio between the SFP connection and the base station for Telecom applications.

Main Features

Open bulkhead for easy access to SFP

Positive feedback to operator when fully mated
One-hand mating
Duplex LC interface
Bulkhead cutouts allow for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
Robust bayonet locking for easy, fast, and secure mating
Multimode and single mode
Water proof, dust proof and corrosion resistant
Expansion to RJ45
Plug has tolerance free design, fully free floating in Z-axis
No Cable buckling at any time during or after installation
Cost effective glass-filled polymer or metal die casted bulkhead

Items	Unite	Specifications
Tension(Long Term)	N	150
Tension (Short Term)	N	300
Crush(Long Term)	N/10cm	100
Crush(Short Term)	N/10cm	500
Min. Bend Radius(Dynamic)	MM	20
Min. Bend Radius(Static)	MM	10
Operating Temperature	℃	-20～+60
Storage Temperature	℃	-20～+60

Product Application

Parameter	standard	Parameter	Standard
150 N Pull Force	IEC61300-2-4	Temperature	40°C – +85°C
Vibration	GR3115 (3.26.3)	Cycles	50 Mating Cycles
Salt Mist	IEC 61300-2-26	Protection Class/Rating	IP67
Vibration	IEC 61300-2-1	Mechanical Retention	150 N cable retention
Shock	IEC 61300-2-9	Interface	LC interface
Impact	IEC 61300-2-12	Adapter Footprint	36 mm x 36 mm
Temperature / Humidity	IEC 61300-2-22	Duplex LC Interconnect	MM or SM
Locking Style	Bayonet style	Tools	No tools required
