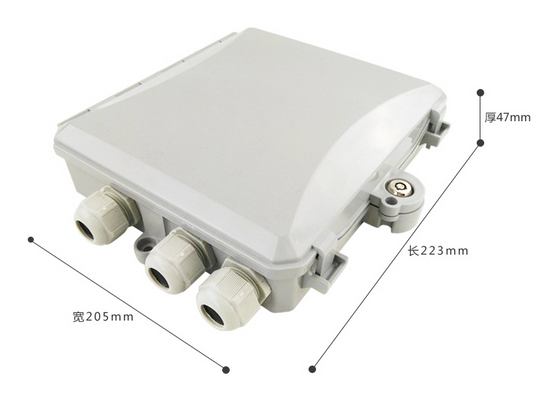

Outdoor Wall Mount FTTH Distribution 12 Cores Fiber Optic Termination Box​

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building.

Feature

Industry Standard User Interface, be made of high impact plastic.

Anti-UV, Ultra violet resistant and rainfall resistant.

Up to 12 FTTH drops.

Wall and pole mountable.

2 inlet ports, 8~24 outlet ports.

Special cable fixed position, ensure the cable fixed pulled off force after not less than 50 N.

Job stress: 70 kpa to 108 kpa;

Using the temperature:- 40 ~ + 60 ℃

Relative humidity: ≤95% (+ 40 ℃).

Protection grade: IP55.

Application

widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
