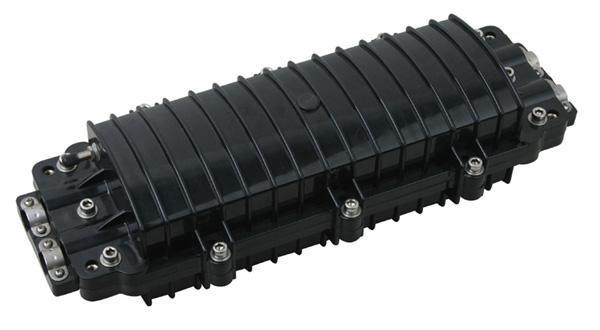

192 Core FTTH Products Horizontal Fiber Optic Cable Joint Box Fiber
Splice Enclosure
Descriptions
Horizontal/Inline fiber optic splice closures are made of excellent
engineering supply different ports types, fittings and different
fiber optic core numbers for Horizontal/inline fiber optic splice
closures. The main application for horizontal fiber optic splice
closure is in CATV, telecommunications and fiber optic networks.
They are suitable for protecting optical fiber splices in straight
through and branching applications, and can be used in aerial, duct
and direct buried fiber optic cable projects.
Application
The product can be applied in the straight line and branch line(one
into two, one into three)connections of optical cables within the
diameter of 22mm(φ), all types and structures, when laid overhead
,in the pipeline, underground. Meanwhile, it is also applied to the
connection of all-plastic city phone cables.
Structural features
The closure adopts horizontal mechanical sealing
and advanced internal structure design.
It can be installed two 1:8 or one 1:16 PLC splitter.
16 pcs 2*3mm drop cable both ends in and out.
The closure is spacious enough for winding and storing fibers.
The patented sealing structure keep good sealing performance
after re-entry and re-using.
Easy open and close of closure with very little tool.
Main technical Specifications
| Dimension(mm) | 580(480)×185×125 |
| Weight(Kg) | 3.5 |
| Diameter of Cable(mm) | Φ10~Φ22 |
| No. of Cable Inlet/Outlet | Four |
| Number of Fibers per Tray | 24(single core) |
| Max. Number of Trays | 8 |
| Max. Number of Fibers | 192(single core) |
| Sealing of Shells | Self-adhesive tape |
Operations
1.choose the cable loop with proper outer diameter and let it go
through the optical cable. Peel the cable , take off the outer and
inner housing, as well as loose contract tube, and wash off the
filling grease, leaving 1.1~1.6mfiber and 30~50mm steel core.
2. fix the cable pressing card and cable, together with cable
reinforce steel core. If the diameter of the cable is less than
10mm, first bind the cable fixing point with adhesive tape till the
diameter has reached 12mm, then fix it.
3. lead the fiber into the melting and connecting tray, fix heat
contract tube and heat melt tube to one of the connecting fiber.
After melting and connecting the fiber, move heat contract tube and
heat melt tube and fix the stainless (or quartz)reinforce core
stick ,make sure the connecting point is in the middle of the
housing pipe. Heat the pipe to make the two into one. Put the
protected joint into the fiber-laying tray.(one tray can lay 12
cores)
4. lay the left fiber in the melting and connecting tray evenly,
and fix the winding fiber with nylon ties. Use the trays from the
bottom up. After all the fiber has been connected, cover the top
layer and fix it.
5. position it and use the earth wire in accordance with the
project plan.
6.sealing the cable retainer nearing the inlet of splice closure
and the joint of the cable rings with sealing tape. And close the
unused inlets with plugs, with exposed concave parts of the plug
sealed with tapes. Then put sealing trips into the sealing groove
on the sides of the shell and grease the concave part of inlet of
the body between the two parts of the shell. Then close the two
parts of the shell and tighten it with stainless steel bolts. The
bolts should be screwed tightly with balanced force.
7. according to the laying requirement, position and fix the
hanging tool .
