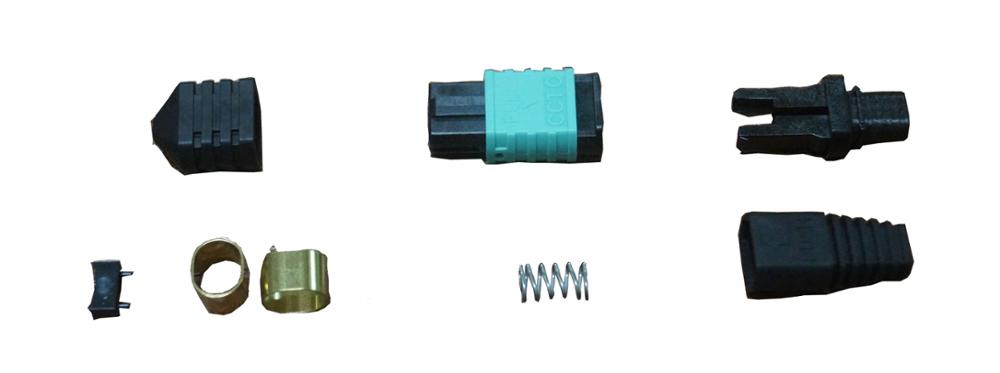

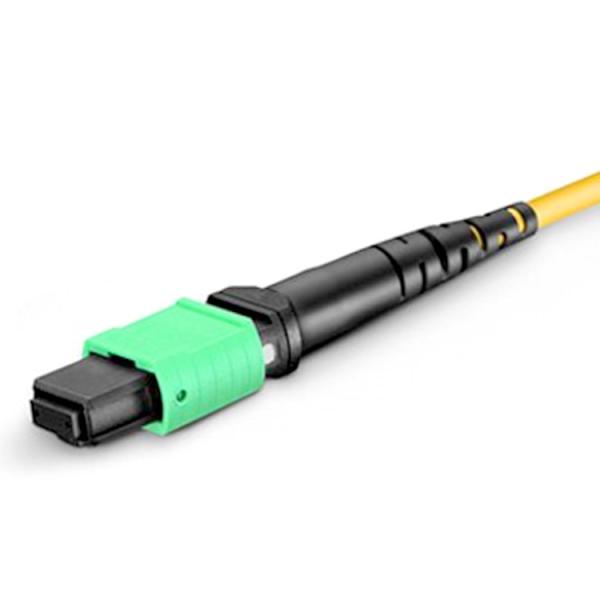

OM3 Fiber Optical MTP MPO Cable Connector 8 Cores / 12 Cores / 24 Cores

OM3 Fiber Optical MTP MPO Cable Connector 8 Cores / 12 Cores / 24 Cores

MPO/MTP trunk multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost, they are used to interconnect cassettes, plane or fan outs.

It offered in fiber types in standard 8, 12, 24 or 48 cores versions using a compact and rugged microcables structure.The compact cable optimize cableway use and improve airflow.These MPO/MTP cable are built with highest quality components.Low loss elite versions are offered, featuring low insertion loss for demanding high speed networks where power budgets are critical.

Features and benefits

1. Utilize MPO/MTP connectors
2. Rapid deployment
3. Factory terminated
4. 100% tested (test data supplied)
5. High-density cable
6. Optimized performance
7. Compliant to directive 2002/95/EC (RoHS)and REACH SvHC
8. MPO connector complies with IEC-61754-7 and EIA/TIA-604-5

Technical Parameter

Model		SM	MM
Connector A:MPO/MTP
Connector Fiber Count		8,12,24,48 Core
Polish		PC,APC	PC
Insertion Loss	Standard	≤0.70dB	≤0.50dB
	Elite Low Loss	≤0.35dB	≤0.30dB
Return Loss		PC≥50dB,APC≥60dB	≥30dB
Durability(500 Matings)		≤0.2dB
Test Wavelength		1310/1550nm	850/1300nm
Connector B:LC,LC Uniboot,SC,FC,ST
Polish		PC,APC	PC
Insertion Loss		≤0.2dB	≤0.2dB
Return Loss		PC≥50dB,APC≥60dB	≥35dB
Durability(500 Matings)		≤0.2dB
Test Wavelength		1310/1550nm	850/1300nm

Applications

1. Data communication network
2. Optical system access network
3. Storage area network fiber channel
4. High density architectures
