Ask Lasest Price | |
Brand Name : | Neutral |
Model Number : | 30u/9u/6u/3u/1u etc |
Price : | Negotiable |
Payment Terms : | T/T, Western Union |
Supply Ability : | 5000pcs per week |
Delivery Time : | 2-5 working days |
Polishing Step | Polishing Film | Polishing Fluid | Thrust(Std.) | Polishing Time(Std.) | Polishing Film Life(Std.) |
Adhesive removal(hand polishing) | Abrasive paper | None | Approx 1 to 2kg | 15 Sec | Dispose of every time |
Grinding(1st polishing) | 9 mic | Water | Point 2 | 50 Sec | 30 times |
Grinding(2nd polishing) | 3mic | Water | Point 2 | 50 Sec | 30 times |
Grinding(3rt polishing) | 1mic | Water | Point 3 | 50 Sec | 30 times |
Grinding(4th polishing) | ADS(0.05mic) | Water | Point 3 | 50 Sec | 10 times |
Features

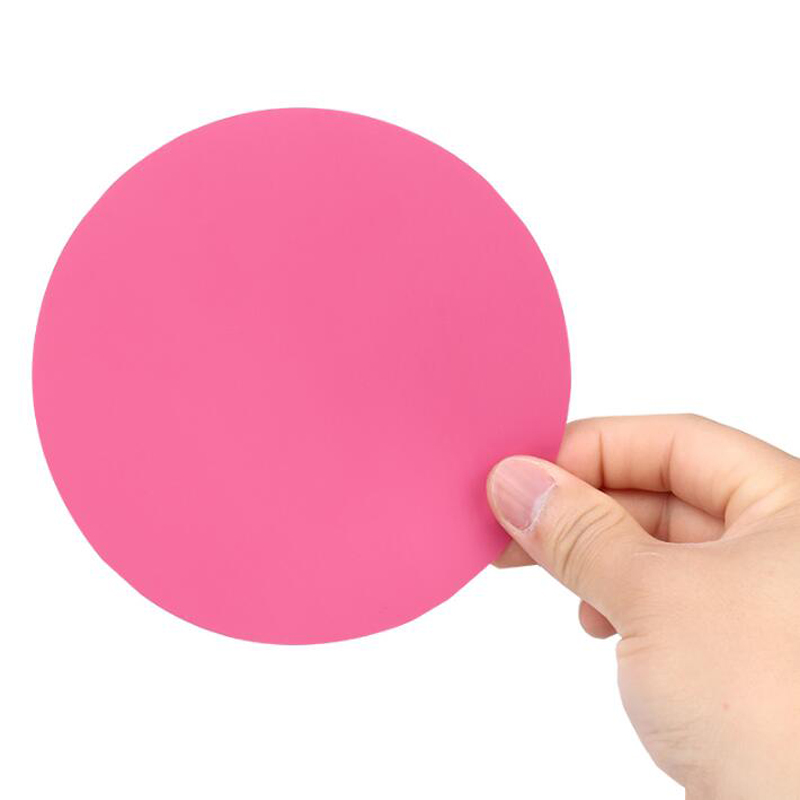

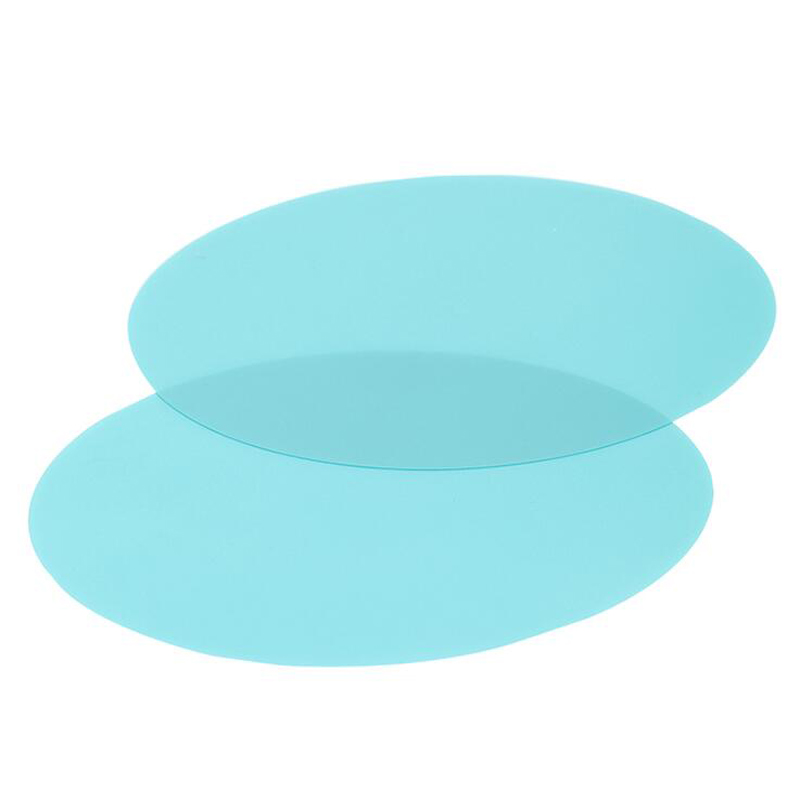

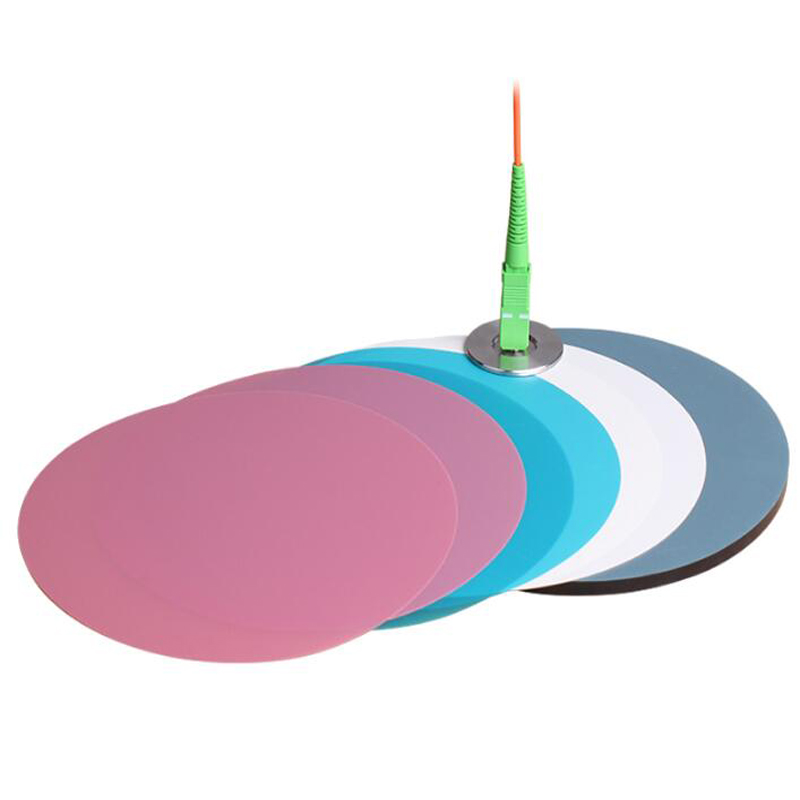

1. Fiber Optic Polishing Film
2. Newly developed tapes for the fiber optics
3. High durability
4. Advantages of both fixed and dissociated polishing modes with
the characteristics of high removal ratio & surface effects
5. Evenly-sprayed particles on coated surface
6. Good intensity & flexility, suitable for polishing on different
facets
7. Suitable for polishing with dry, water or oil medium
8. The fiber polishing film is durable polishing rate compared to
existing polishing films and offers economical operations
![]() |
