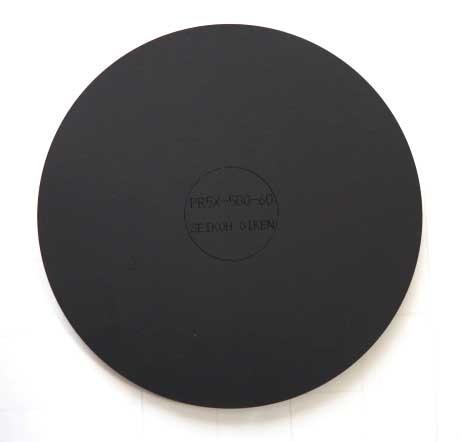

Rubber Fiber Optic Materials Fiber Optic Polishing Pad Seikoh Giken
Black
Description
| Rubber O.D.: | 4.3"(110mm) or 5''(127mm) |
| Thickness: | 5.0mm, 4.0mm or 2.5mm |
| Thic. Tolerance: | ±0.1mm |
| Durometer: | 40, 50, 60, 70, 75, 80, 85, 90 Duro |
Feature:
Special designed for polishing spherical surface of fiber
connectors
Surface hardness flat and even
100% tested for hardness and parallelism A5
Have different hardness to choose: 500-50, 55, 60, 65, 70, 75, 80,
85
Have different depths to choose: 5mm 4.8mm, 2.5mm, etc.
Good wear resistance, the repeatability can reach 30000 times at
least
Good for 100% 3D test
Advantage
Suitable for fiber connector grinding, the connector includes
ceramic ferrule, MTP, MPO and other non-standard connectors;
Widely used in ordinary four-angle pressure grinder and Seiko
technology SFP-550 series grinder;
There are many different degrees and thicknesses for customers to
choose from;
The surface of the pad is smooth and smooth, and the flatness is
2-5um;
The special surface helps the abrasive paper to stick and is
resistant to wear;
Helps improve fiber endface yield and 3D yield.
Suggestion:
To save cost, you can use both the Seikoh Giken polishing rubber
pads and the good quality pads made in China.
Application:
- For polishing many kinds of fiber optic connectors, such as fiber
optic ferrules of SC, LC, ST, FC and even MPO MT type.
- Applied in the following polishing machines:Squared type Fiber
Optic Splicing Turmeric Polishing Machine----Central Pressurized
Fiber optic polishing machine---- MPO polishing machine
Order Information Guide:

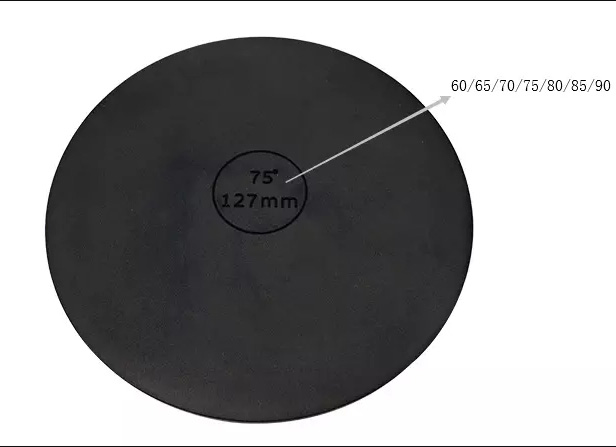

List of Polishing Rubber Pad Seikoh Giken
| ITEM | Part Number | Size Diameter | Thickness | Material | Hardness (Shore Hardness) | Packaging |
| PAD SFP-550 Series | PG5X-500-60 | 127mm | 5mm | Rubber | 60 Shore Hardness | 3 pcs / set |
| PAD SFP-550 Series | PG5X-500-65 | 127mm | 5mm | Rubber | 65 Shore Hardness | 3 pcs / set |
| PAD SFP-550 Series | PG5X-500-70 | 127mm | 5mm | Rubber | 70 Shore Hardness | 3 pcs / set |
| PAD SFP-550 Series | PG5X-500-75 | 127mm | 5mm | Rubber | 75 Shore Hardness | 3 pcs / set |
| PAD SFP-550 Series | PG5X-480-80 | 127mm | 4.8mm | Rubber | 80 Shore Hardness | 3 pcs / set |
| PAD SFP-550 Series | PG5X-500-85 | 127mm | 5mm | Rubber | 85 Shore Hardness | 3 pcs / set |
| PAD SFP-550 Series | PG5X-500-90 | 127mm | 5mm | Rubber | 90 Shore Hardness | 3 pcs / set |
| For more, you can choose..... | | 110mm | 5mm | Rubber | 55/60/65/70/75/80/85/90 available | 3 pcs / set |
