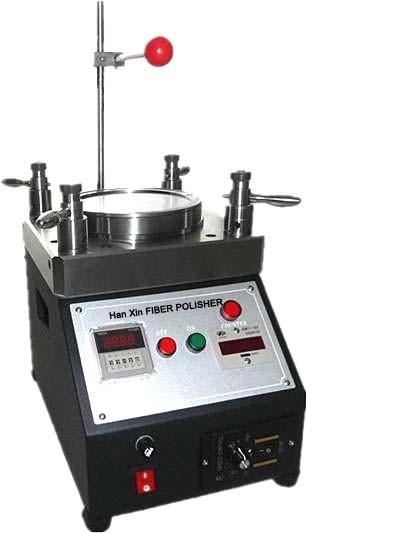

High Stable Optical Polishing Machine , Fiber Patch Cord Making
Machine
Specifications:
- Convenience for adjusting pressure, unloading and replacing jigs.
- Excellent connector and face polishing quality, the percentage of
products sent back for repair is very low.
- Save material and low cost for grinding.
- Easy to use and stable.
- Display grinding speed which can be adjusted any time.
- Control the direction with pro and con, convenience for
Adjustment.
- Toothed gearing, more stable and deep-set.
Application scope:
HanXin-polisher is applied to materials & specification as below:
| Index | Material | Specification | Comments |
| 1 | ZrO2 ferrule | ф2.5mm,ф2.0mmф1.25mm | PC,APC with or without connector |
| 2 | Crystal capillary | ф1.8mm | Either Flat, sland or round |
| 3 | G-lens,C-lens | ф1.8mm |
| 4 | Stainless steel, Ti-alloy | ф3.0mm,ф2.5mm |
| 5 | Resin material | MT-RJ,MPO,MPT |
Notes: should use specified polishing paper and liquid, otherwise
there will be uncertain trouble to polishing quality.
Maintenance
- After the machine finishes operating, or stop for certain time,
must clean all polishing liquid completely, otherwise the liquid
will get dry and leave hard stain, which will cause trouble for
next polishing.
- If the machine keeps no running for long time, need clean the
holder in ultra-sonic cleaner, then paste rusty-proof lubrication,
stored in specified tooling box.
- The lifetime of polishing paper is varied on paper’s specification
and polishing process.
- Should inspect lubrication status of moving parts and add
lubrication periodly, advice maintenance of lubrication,
rusty-proof paste with NLGIZ level lubrication monthly.
- Should inspect cooling fan, assure no stuck for dirt, clean dirt
and stain over fan to keep smooth cooling system.
- Protect the polishing plate and brass-ring from contamination and
impact.
Troubleshooting
| Trouble | Cause | Solution |
| unable to run | observe whether the machine connected to power source properly,
switch over speed-adjuster panel at ON position. | Conect to power source, switch the button over speed-adjuster’s
panel to ON position. |
| Timer is setup to be zero | Re-set Timer to certain value |
| FUSE broken | replace fuse |
| Rotation-alternating switch in wrong postion | Turn swtch in righ position, either CW or CCW. |
Bad polishing shape: 1. scratch 2. spot 3. curvature out of specification | paper used more than 10 cycles | Re-polishing |
| no water for polishing |
| dirty and contaminated water |
| ferrules in unsuitable fixing status over the holder |
| Wrong weight position |
Bad polishing surface finish: 1. rough, not smooth 2. less then 40dB | paper used more than 10 cycles |
| polishing liquid not used |
| contaminated polishing paper |
| ferrules not clean up completely |
| scratch left by polishing paper when take ferrules out. |
Polish efficency and quality
The production line will be high productivity & quality that is
equiped with HANXIN polishing machine and advanced no-touch fibre-interference instrument. Polishing with high quality sandpaper, strict process control
through glue-removing, rough-polishing, mid-polishing to fine
polishing, close surface inspection and quality monitor with fibre-interference instrument, HANXIN polishing machine helps customers achieve success.

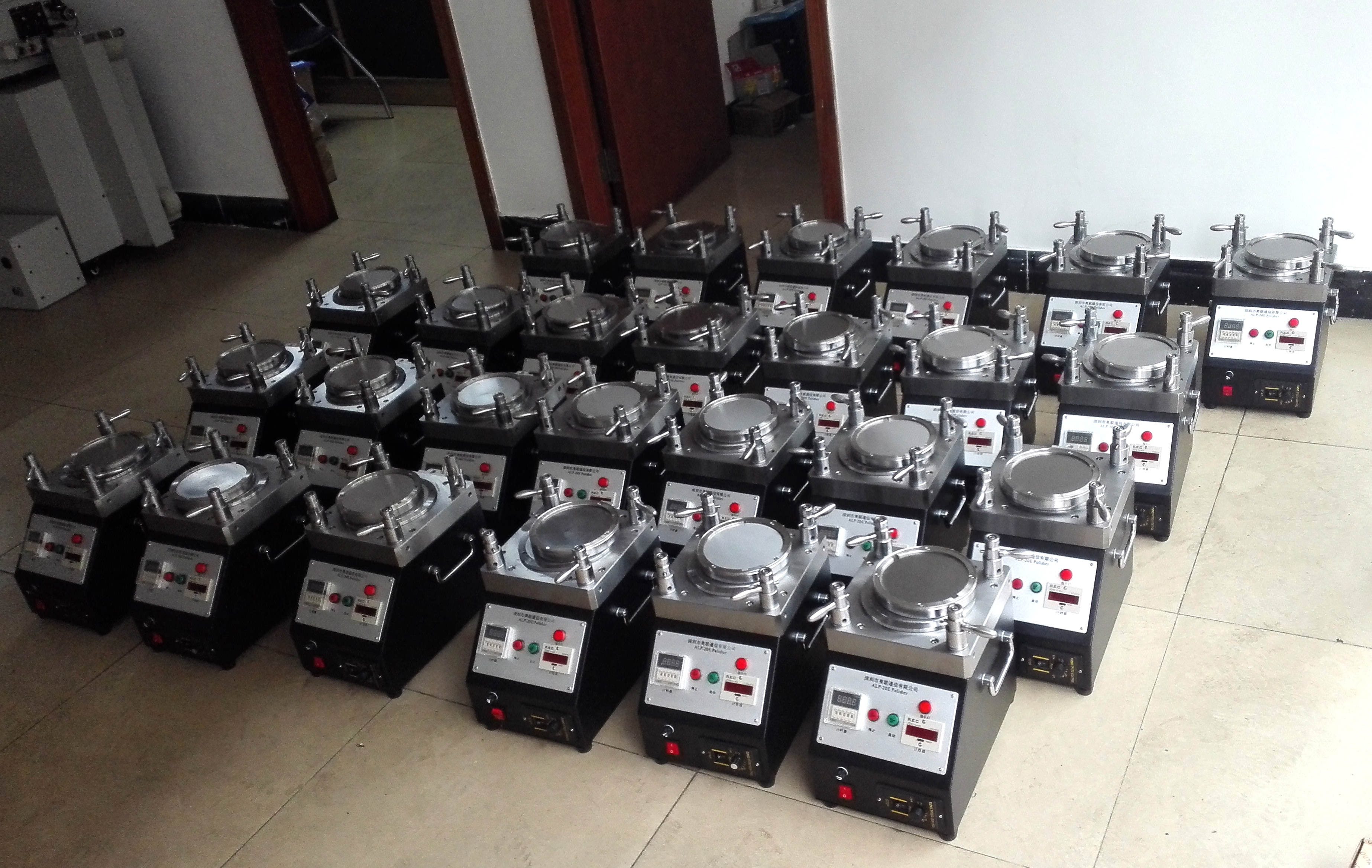

Our Stock
