    Low Insertion Loss Fiber Optic PLC Splitter 1X4 Insert Type With SC Connector

    Ask Lasest Price
    Brand Name : hanxin or OEM
    Model Number : 1*4 cassette type splitter
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 2000PCS Per month
    Delivery Time : 3-15 working days
    • Product Details
    • Company Profile

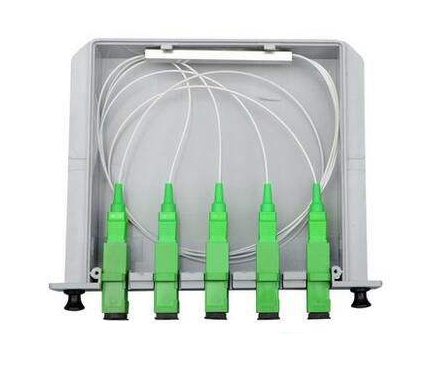

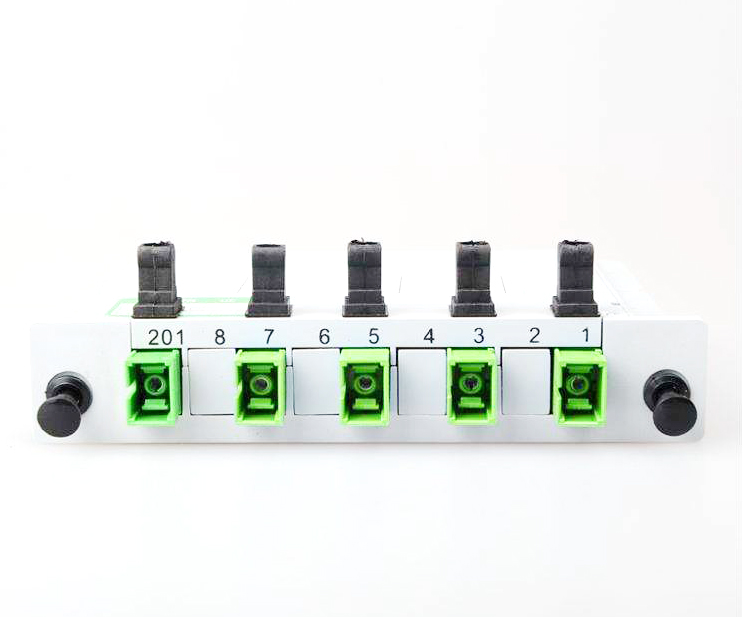

    Low Insertion Loss Fiber Optic PLC Splitter 1X4 Insert Type With SC Connector

    Low Insertion Loss Fiber Optic PLC Splitter 1X4 Insert Type With SC Connector


    Insert Type PLC Splitter 1X4 Fiber Optic PLC Splitter with SC Connector


    A fiber optic splitter is a device that splits the fiber optic light into several parts by a certain ratio. PLC splitters offer a better solution for larger applications. Waveguides are fabricated using lithography onto a silica glass substrate, which allows for routing specific percentages of light. As a result, PLC splitters offer accurate and even splits with minimal loss in an efficient package. PLC (Planar Lightwave Circuit) Splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. Available split counts are: 1xN and 2xN (N for 2, 4, 8, 16, 32, 64). PLC Splitters are available with 900µm loose tube singlemode fiber and terminated or unterminated as per your needs.


    Characteristics:


    Good uniformity and low insertion loss
    Low Polarization Dependent Loss
    Excellent Environmental Stability
    Excellent Mechanical
    Stability Telecordia GR-1221 and GR-1209
    Components through TLC-Certified, Conform to YD1117-2001


    Applications:


    Fiber to the point (FTTX)
    Fiber to the home (FTTH)
    Passive optical networks(PON)
    Local area networks (LAN)
    Cable television (CATV)
    Test equipment


    Parameters:



    Type    		1x21x41x81x161x321x64
    Operating wavelength(nm)1260-1650
    Insertion loss (dB)Typical3.67.210.513.51719.5
    Maximum47.5111417.221
    Uniformity (dB)Typical0.40.50.6112
    Maximum0.60.60.81.21.52.5
    Polarization Dependent Loss (dB)Typical0.10.10.150.20.20.2
    Maximum0.150.150.250.30.30.3
    Wavelength dependent loss (dB)Typical0.10.10.150.30.30.3
    Maximum0.20.30.30.50.50.5
    Return loss (dB)Minimum55/50
    Directivity (dB)Minimum55
    Operating temperature (℃)-20 to 85
    Storage temperature (℃)-40 to 85
    Optical fiber typeSMF-28 Or customer required
    Optical fiber length (m)1.2 or customize

    Order Information



    Input Channel Number    		Input Optical
    Fiber Type    		Output Channel NumberOutput Optical
    Fiber Type    		Connector Type In/OutFiber
    Length    		Package
    Type
    1=1 channel
    2=2 channel    		0=250um bare fiber
    1=900um loose tube
    2=2.0mmcable
    3=3.0mmcable    		02=2 channel
    04=4 channel
    08=8 channel
    16=16 channel
    32=32 channel
    64=64 channel    		0=250um bare fiber
    1=900um loose tube
    2=2.0mmcable
    3=3.0mmcable    		0=no connector
    1=FC/PC
    2=FC/APC
    3=SC/PC
    4=SC/APC
    5=LC/PC
    6=LC/APC
    S=Specify    		10=1.0 meter
    15=1.5 Meter
    20=2.0 Meter
    30=3.0 Meter

    1=S.S Tube 1
    2=S.S Tube 2
    3=S.S Tube 3
    4=ABS Box
    5=LGX Box
    6=19 Inch
    Rack

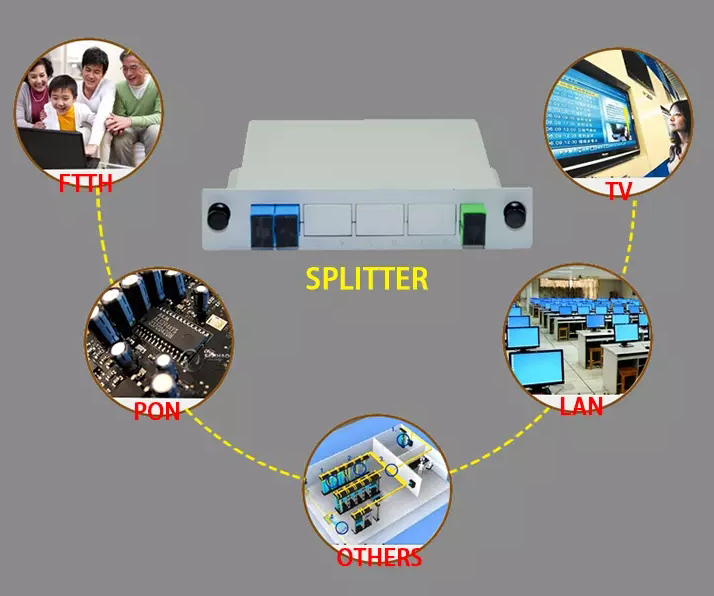

    Application


    FTTH

    PON

    Optic communication system

    LAN

    CATV

    Test instrument

    Fiber optic sensor


    Packaging
