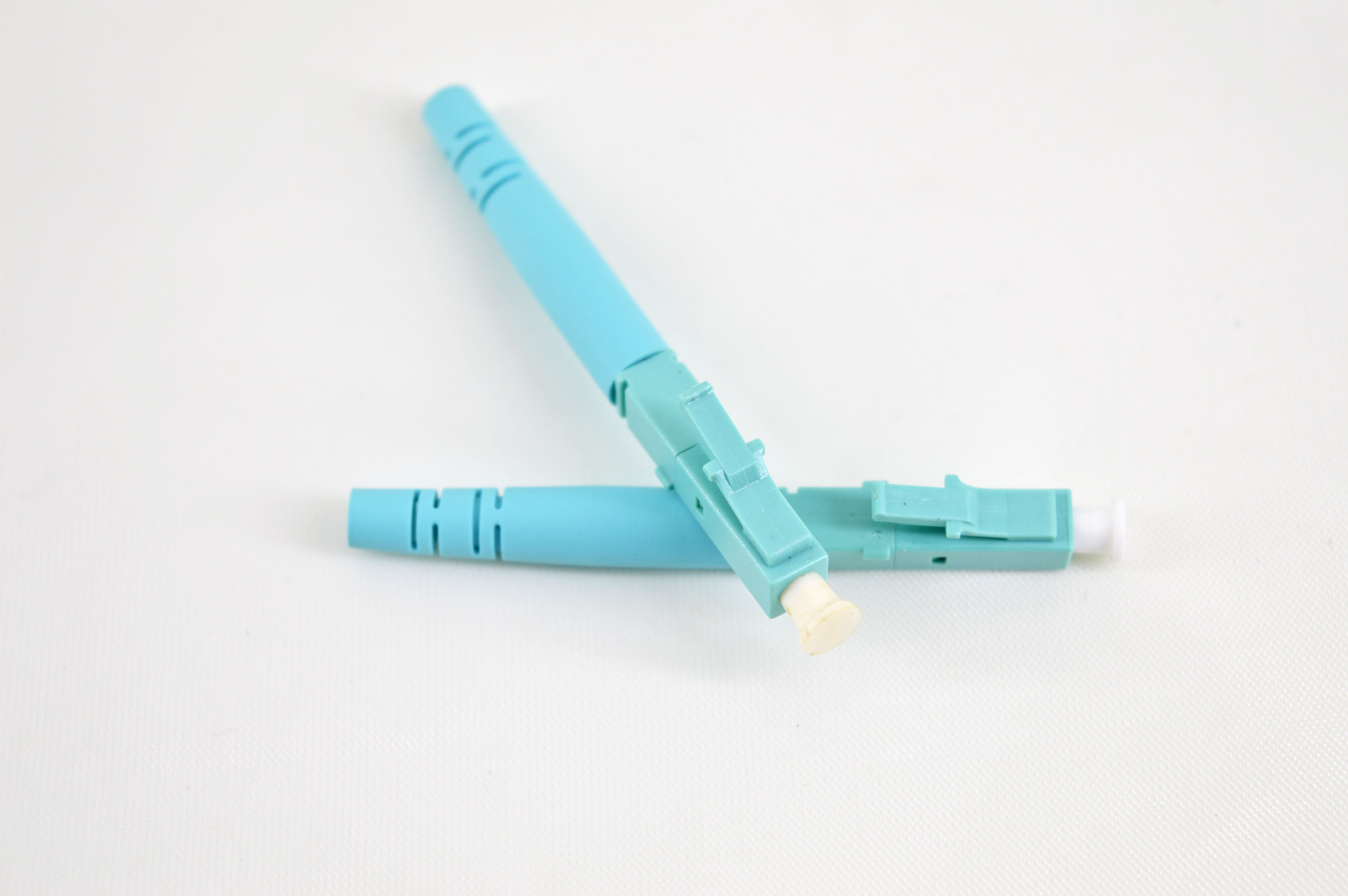

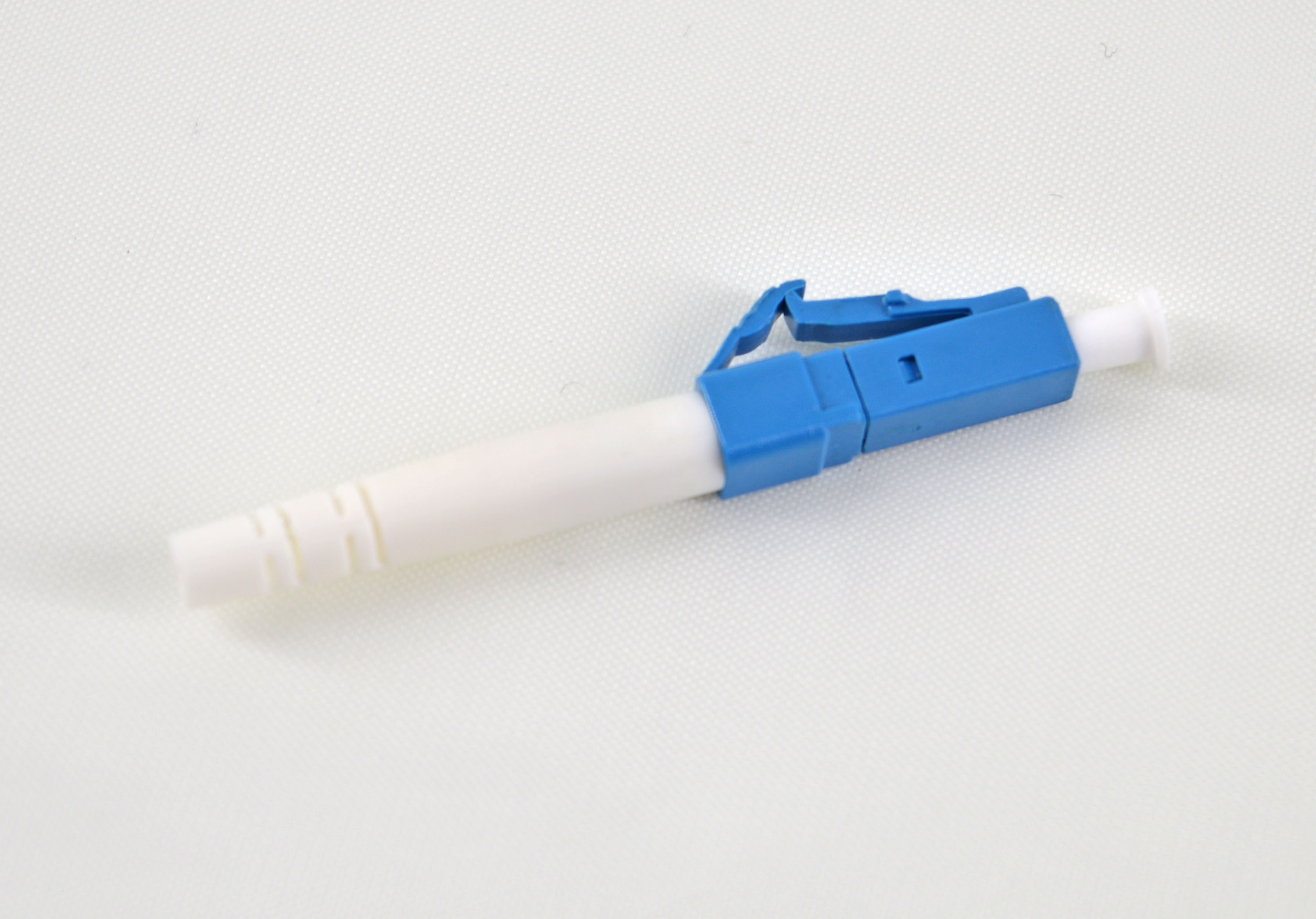

LC Simplex Fiber Optic Connector Parts With Pull Bar 3.0 Fiber LC Uniboot Connector

LC Simplex Fiber Optic Connector Parts With Pull Bar 3.0 Fiber LC Uniboot Connector

Product description

Product Name	Optical parts Optic duplex with pull bar 3.0 fiber LC uniboot connector
Modle Number	Fiber optic LC 3.0 connector
Fiber type	SM OM1 OM2 OM3 OM5
Connector type	LC
Insertion Loss	≤0.3db
Reture loss	≥50db
Application	FTTX,CATV Metro,LAN
Form of sale	OEM/ODM
Use	patch cord,PLC splitter,pigtail
Custom Design	Welcome
Sample Lead Time	1day
Sample price	As per sample details
Certificate	RoHS,SGS,CE
Advantage	Best price,best service
Features	1.Pass high&low temperature test 2.100% raw material 3.steady quality

Parameter	Unit	FC,SC,LC				ST,MU			MT-RJ,MPO
		SM			MM	SM		MM	SM		MM
		PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC
Insertion loss	dB	≤ 0.3	≤ 0.2	≤ 0.3	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.3	≤ 0.2	≤ 0.2
Return loss	dB	≥ 45	≥ 50	≥ 60	≥ 30	≥ 50	≥ 50	≥ 30	≥ 45	≥ 50	≥ 35
Operating wavelength	nm	1310, 1550				1310, 1550			1310, 1550
Exchangeability	dB	≤ 0.2				≤ 0.2			≤ 0.2
Vibration	dB	≤ 0.2				≤ 0.2			≤ 0.2
Operating temperature	°C	-40~+75				-40~+75			-40~+75
Storage temperature	°C	-40~+85				-45~+85			-45~+85
Cable diameter	mm	φ 3.0, φ 2.0, φ 0.9				φ 3.0, φ 2.0, φ 0.9			φ 3.0, φ 2.0, φ 0.9

Features

• Low insertion loss,high return loss
• Excellent Temperature stability
• Good repeatability and exchangeability
• Excellent mechanical endurance
• Strict curing time and temperature control
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• The fiber optical patch cord can be customized according to customers'specific
requirements (Customized Connector/Length/package...)
• 100% NEW raw material and well quality control ensure the best life time.
