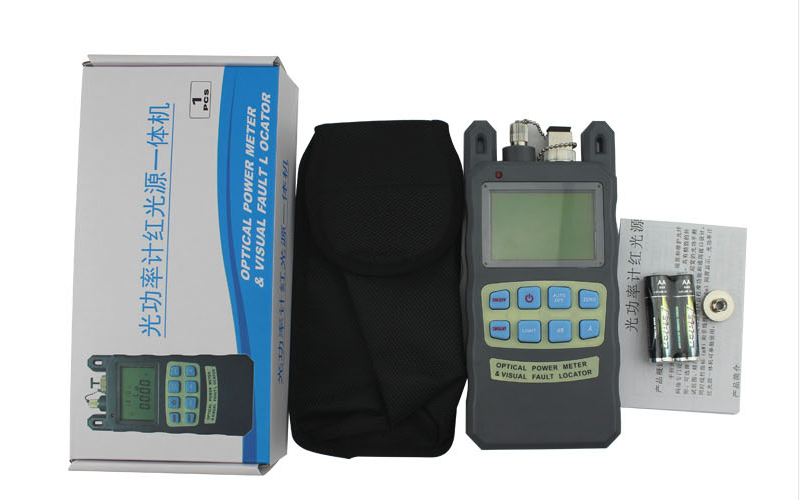

Handheld Light Source Fiber Optic Cable Tools Multi Meter With
Visual Fault Locator
This portable optical power meter with red light source is an
accurate portable instrument with long service time specially
designed for the installation, operation and maintenance of
fiber-optical network. It features fine appearance, controllable
backlight display, automatic power off, supper wide testing range
for optical power, high accuracy, self-calibration and universal
interface. What’s more, the linearity index(mW) and nonlinear index
(dBm) will be displayed in a same screen. The optical power meter
can be used alone for saving power.
Product features
The optical power meter with red light of 10mW or 1mW features open
self-calibration which could be operated by the user.
With two AA batteries, the optical power meter can work
continuously for 40 hours. It can work continuously if working with
a red light source of 10mW, or 42 hours with a red light source of
1mW.
the linearity index(mW) and nonlinear index (dBm) will be displayed
on the same screen of the optical power meter.

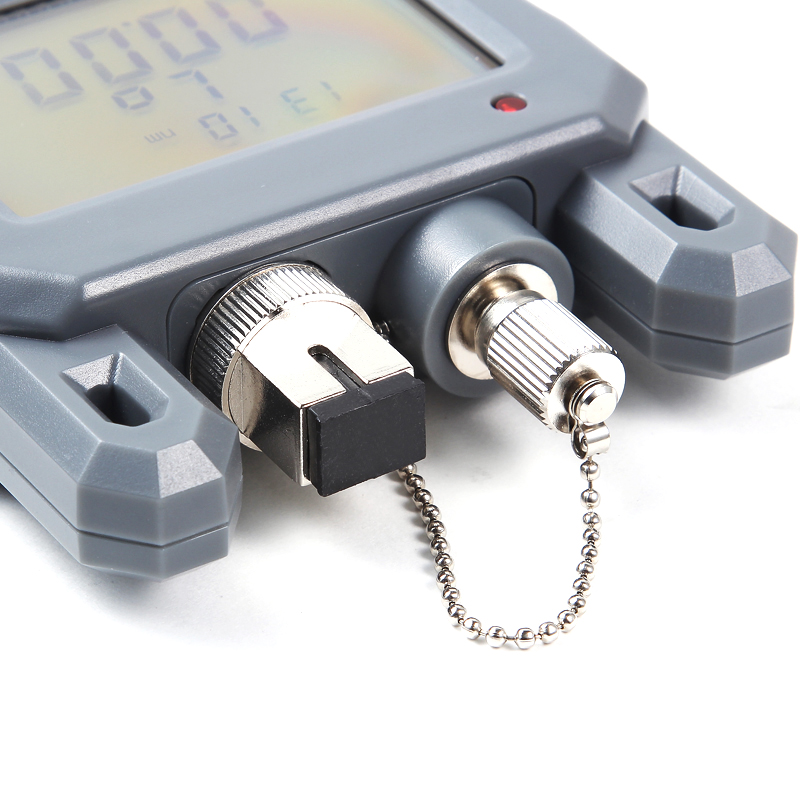

Special universal interface for FC/SC/ST, easy to transformation.
Optional auto off.
Optional backlight display.
Optional steady/flashing red light.
Technical parameters of the optical power meter with red light
source
| Measurable range | -70～+10dbm |
| Probe type | InGaAs |
| Wavelength range | 800～1700nm |
| Standard wavelength(nm) | 850,980,1300,1310,1490,1550,1625 |
| Display resolution | linear display: 0.1% logarithmic display: 0.01dBm |
| Working temperature(℃) | -10～+60℃ |
| Storage temperature(℃) | -25～+70℃ |
| Time for auto off(min) | 10 minutes |
| Continuous working time with batteries | No less than 40 hours |
| Boundary dimension(mm) | 180×83×28 |
| Power supply | Two chargeable lithium battery or AA alkaline battery |
| Weight(g) | 300g |
| Suffix of the model | &1 | &10 |
| Output power of the red light | >1mW | >10mW |
| Output wavelength of the red light | 650nm |
| Optical fiber adapter of the red light | Universal adapter |
| Service life of the battery | >42 hours | >13 hours | >10 hours |
Attentions:
1. Wavelength range: the optical power meter can work with
specified parameters within the standard working wavelength λ,
ranging from λmin to λmax.
2. Measurable power range: the range of optical power which could
be measured with specified parameters.
3. Uncertainty: the error between the test result for certain
optical power and which for standard optical power.
4. Please do not stare at the laser for avoiding harm for the eyes.
