IPC Structure Dual APC UPC Polish Jig / Zig For SC Fiber Optic Connector

The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate with Interference> = 98% (100% Typical, according to IEC), This fiber polishing fixture is high stability and good surface quality.

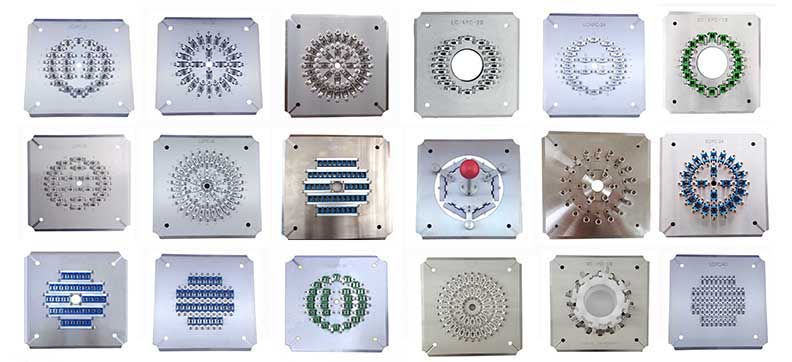

fiber polishing fixture using high quality steel with heated treat, the hardened steel S2316 provide long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, MPO and E2000, FA, etc, and also according to the customer request.

Key Features:

• Designed for polishing manner with planet tray

• Using a new I.P.C jig technology (every ferrule is pressed singly) and making the finished yield rate much higher

• Dual APC &UPC polishing and Accommodating most styles of connectors

• High efficiency to deal with all kinds of connectors. The maximum polishing quantity for MU and LC connectors is 24 pcs; And maximum polishing quantity for SC, FC and ST connectors is 20 pcs

• The polisher was made by high quality stainless steel with heat treatment and it is high accuracy and durability

• Quick to change jigs, Easy and flexible to operate

• APC return loss as low as -70 dB, UPC return loss as low as -60 dB, Insertion loss 0.2 dB typical

• Super centering accuracy

• Excellent connector end-face polishing quality

Han Xin Communications Limited is a high-tech enterprise specialized in the research and manufacture of fiber optic telecommunication products. Han Xin was founded by a leading team of professional technicians and research pioneers, who have been dedicated to the fiber optic communication field for 10 years. Our products are widely used in telecommunication system, LAN, broadcast, CATV and network industry. We provide the following high-quality products: fiber optic patch cord production machines (fiber optic polishing machine ,fiber optic oven ,fiber optic jigs and so on).passive products (fiber optic patch cords, connectors, adapters, attenuators, couplers, PLC splitters, WDM, isolators and so on), active products (fiber media converters, transceivers, etc.), management products (fiber patch panels, ODF, joint closures and fiber faceplates) and FTTH products (fast field connectors, fiber optic mechanical splicers, FTTH indoor cables, drop cables, etc.)Our company is committed to providing stable quality and excellent service systems with continuous innovation and professional solution, ensuring product quality.

Our company is an ISO9001 certified company with 15 products and software related patents, and was awarded the title of “National High-tech Enterprise” in 2018.
